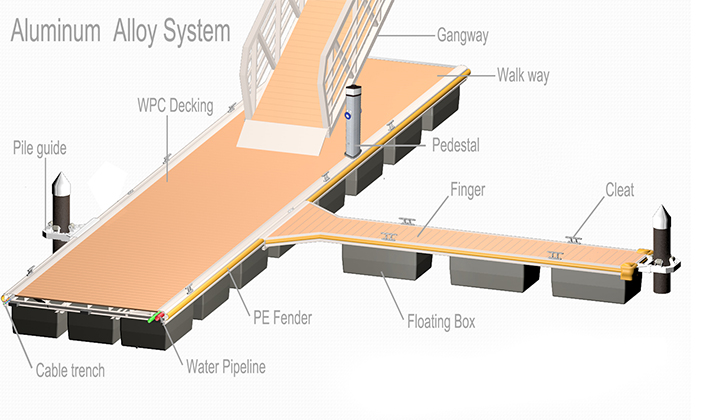

Pontoon System

Technical Data

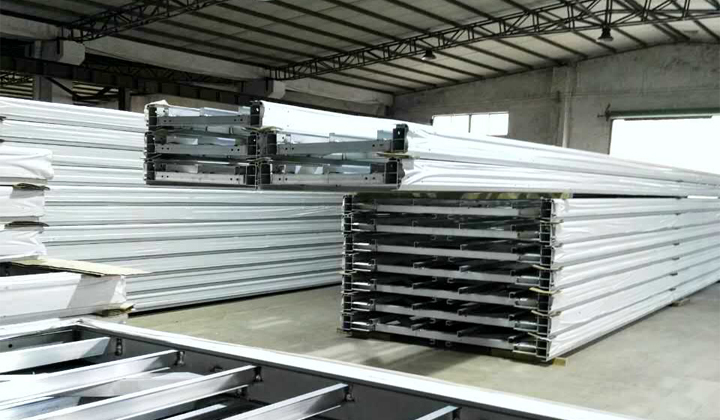

Main Structure: 6061-T6 or 6082-T6 marine
aluminum alloy extruded profile, MIG welding forming.
Manufacture References: EN ISO 15614-2 & ASTM
Dock Float: Standard LLDPE dock float (optional for
concrete floating box)

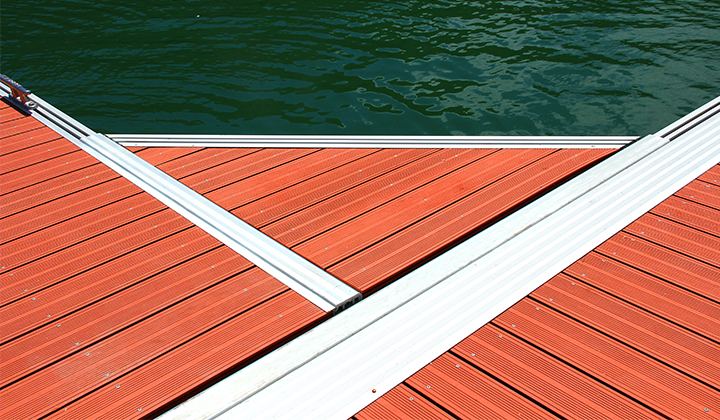

Pavement: Standard non-slip WPC/PE decking
Fender: Standard PE/rubber fender, LLDPE corner sheath
Connection Bolt: Standard 316 stainless steel material
Pontoon Connection: Anti-fatigue and noise-free rubber
composite elastic module
Mooring Cleat: Standard 316 stainless steel material
or marine aluminum alloy material

Structure Design References:

1. Australian Standard Guidelines For Design of Marinas (AS3962-2001)

2. For the Design, Construction and Operation of Coastal and Inland Marinas and Yacht  Harbours

3. Aluminum and aluminum alloys—Extruded rod/bar, tube and profiles (BS EN 755-2:2008)

4. Aluminum and aluminum alloys—Chemical composition and form of  wrought products (BS EN 573-2:1995);

5. Structural use of aluminum  BS 8118 part1:1991

6. Welding—Recommendations for welding of metallic materials—Part4:Arc welding of aluminum and aluminum alloys (BS EN1011-4)

7. Other design references: different regional design codes and customers' customized requirements.

Specification  Details

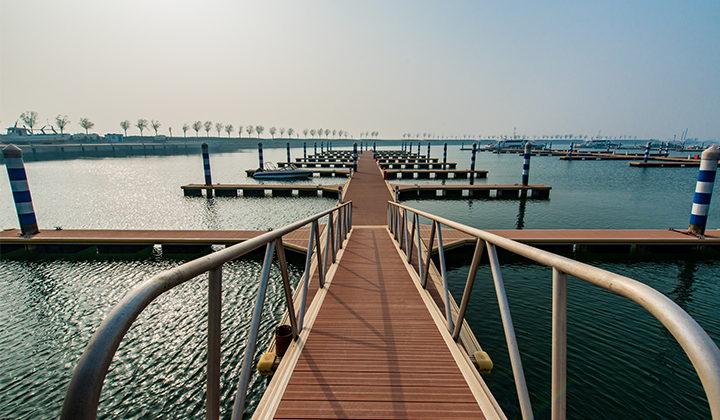

Aluminum Walk Way

Aluminum Y-BOOM

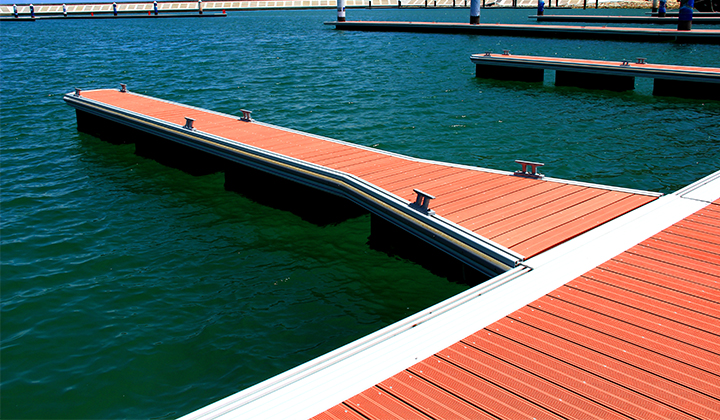

Aluminum Finger
