Accessories
Feature

(1)The cast aluminum alloy mooring cleat/bollard is made of marine aluminum alloy. The product has good resistance of seawater corrosion and rust prevention performance, which can perfectly adapt to harsh marine environment.









PDF
VIEW PRODUCT BROCHURE >

Specification Information

Item NoSpecification Size(MM)Applicable Yacht/Boat(Feet)Mooring Load(KN)Single Weight(KG)
ALCL-1.5T01300*240*98.5<30201.08
ALCL-3T01450*360*169.5<45303.60
ALCL-2T02240*240*120<30201.9
ALCL-3T02300*300*150<45303.4

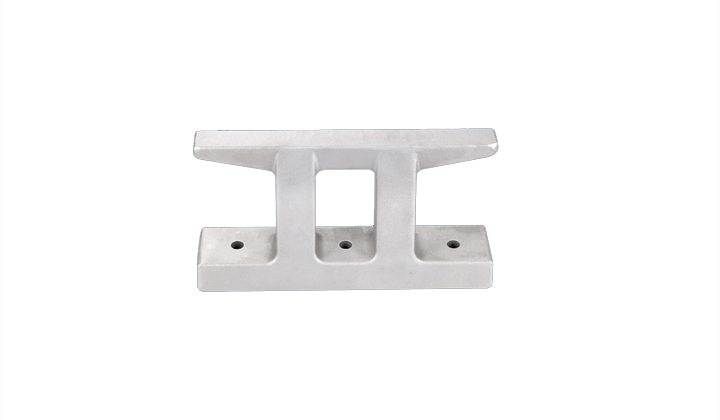

Pictures Show                                                                         Installation Diagrams

ALCL-1.5T01


ALCL-3T01


ALCL-2T02


ALCL-3T02



Application Scope

This product can be applied to yachts and ships below 15m.
   . The specifications and patterns of the cleat/bollard can be customized in accordance with drawings and samples.
   Surface logo on the cleat/bollard can be customized under requirements.
